From Ground to Pavement: Ensuring Reliable Performance of Tall Embankments

Tall embankments are essential components of modern transportation and infrastructure projects, such as highways, railways, and airport runways. While they help satisfy geometric and operational requirements, these large fills exert significant stress on the soils underneath. Without a thorough understanding of soil behavior, these stresses can lead to excessive or uneven settlement, resulting in distressed structures,  maintenance challenges, and costly delays. Accurate settlement assessment is therefore essential.

HVJ has extensive experience ensuring the reliable performance of tall embankments. Through detailed geotechnical investigation, engineering analysis, real-time monitoring, and ongoing validation, our approach ensures that actual field behavior meets all requirements for long-term pavement performance.  Here's a closer look at what's involved, with details from one of our recently completed projects:

1. Predict Settlement Through Geotechnical Investigation
The first step is a thorough subsurface investigation and laboratory testing program. This is necessary to reliably predict settlement beneath tall embankments.  Without high‑quality data, settlement magnitudes or rates may be underestimated, creating risks of construction delays, increased maintenance, or premature deterioration of supported structures.

Recently, the HVJ team supported an airport runway extension project of approximately 500 feet, in which the new runway section would be supported on embankments ranging from 4 to 20 feet in height. We began by evaluating subsurface conditions using soil borings, standard index testing, and advanced laboratory testing. We performed Standard tests, including water content and classification. Next, we incorporated advanced one‑dimensional consolidation testing. This characterized compressibility and estimated primary consolidation settlement.

Using the available data, we performed settlement analyses to estimate total settlement and the time required for primary consolidation to be complete. Our preliminary results indicated a lengthy settlement period. Therefore, we recommended real-time settlement monitoring to validate assumptions and refine predictions.

2. Active Settlement Monitoring
Analytical models inherently rely on assumptions. That's why field verification is essential, particularly for structures as sensitive as tall embankments supporting critical runway pavement and railroad systems. Real‑time settlement monitoring programs provide this validation by measuring actual ground settlement as loading progresses.

To execute this step, it is necessary to use monitoring equipment to review actual settlement trends and determine when pavement placement can proceed. For example, as part of the airport runway extension project discussed earlier, we implemented a settlement monitoring program during and after embankment construction. The design team installed monitoring equipment at six locations corresponding to varying embankment heights.

The design team selected Multipoint Borehole Extensometers (MPBX)  for their ability to continuously measure settlement at multiple depths. The system consists of anchor points installed within a borehole and connected to a surface readout head by sleeved rods, allowing precise measurement of vertical deformation.

3. Validate Data and Assess the Timeline
A key part of an effective observational approach is comparing analytical predictions against actual measured settlement. This process allows the engineering team to refine settlement models, update soil parameters, and correct assumptions in real time.

For our airport project, we integrated monitoring data with analytical models to confidently determine when primary settlement was substantially complete.

The Bottom Line: Benefits to Owners and Project Stakeholders
By combining detailed geotechnical analysis, advanced laboratory testing, and real‑time settlement monitoring, engineering teams can help advance the pavement placement schedule, even by several months.

This proactive approach also enables more efficient construction sequencing and helps owners make informed, data‑driven decisions. Ultimately, integrating geotechnical investigation with a comprehensive instrumentation plan is the most reliable way to ensure long‑term pavement performance.

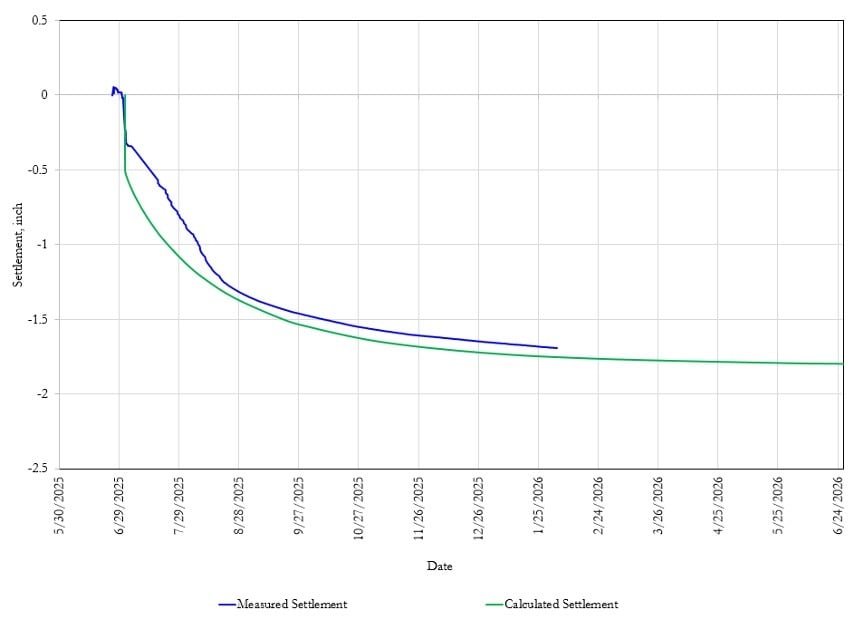

Figure 1 – Measured and Calculated Settlement Profile with Time (Embankment Height of 18 feet)
